AZURE-O556W

Laser by AZURE Photonics
389 more products from this company
Request Quote

Note: Your Quotation Request will be directed to AZURE Photonics.

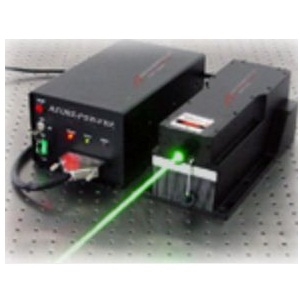

The AZURE-O556W from AZURE Photonics is a Laser with Wavelength 556 nm, Power 1.5 to 2.5 W, Output Power (CW) 1.5 to 2.5 W, Operating Temperature 10 to 35 Degree C. More details for AZURE-O556W can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AZURE-O556W
  • Manufacturer
    AZURE Photonics
  • Description
    Yellow Green Laser at 556 nm

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Scientific / Research, Medical
  • Operation Mode
    CW Laser
  • Wavelength
    556 nm
  • Wavelength Accuracy
    ±1 nm
  • Power
    1.5 to 2.5 W
  • Output Power (CW)
    1.5 to 2.5 W
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Yellow, Green
  • Transverse Mode
    Near TEM00
  • Beam Divergence :
    <2.0 mrad
  • Warm up time
    10 Min
  • Analog Modulation
    TTL on/off 1kHz~1kHz,1kHz~10kHz, 10kHz~30kHz, and Analog modulation option
  • Power Stability
    <3%, <5%, <10%
  • Pointing Stability :
    0.05 mrad
  • Power Supply
    90 to 264VAC
  • Note
    Beam Height: 93.5 mm

Physical Properties

  • Power Supply Dimension
    307 x 162 x 134 mm3(L x W x H)
  • Power Supply Weight
    5.2 kg
  • Dimension
    333 x 140 x 125 mm3(L x W x H)
  • Weight
    6.1 Kg
  • Beam Diameter
    4 mm

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
