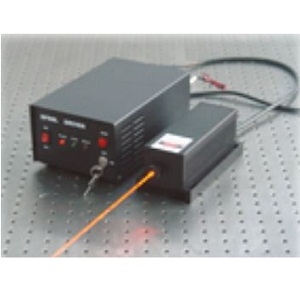

AZURE-O589F

Laser by AZURE Photonics
389 more products from this company
Request Quote

Note: Your Quotation Request will be directed to AZURE Photonics.

The AZURE-O589F from AZURE Photonics is a Laser with Wavelength 589 nm, Power 0.1 to 0.15 W, Output Power (CW) 0.1 to 0.15 W, Operating Temperature 10 to 35 Degree C. More details for AZURE-O589F can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AZURE-O589F
  • Manufacturer
    AZURE Photonics
  • Description
    Yellow Laser at 589 nm

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate), OEM Laser Module
  • Application Industry
    Scientific / Research, Medical
  • Operation Mode
    CW Laser
  • Wavelength
    589 nm
  • Wavelength Accuracy
    ±1 nm
  • Power
    0.1 to 0.15 W
  • Output Power (CW)
    0.1 to 0.15 W
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Yellow, Green
  • Transverse Mode
    Near TEM00
  • Beam Divergence :
    <2.0 mrad
  • Warm up time
    10 Min
  • Analog Modulation
    TTL on/ off ,1kHz~1kHz,1kHz~10kHz, 10kHz~30kHz, and Analog modulation option
  • Power Stability
    <3%, <5%, <10%
  • Pointing Stability :
    0.05 mrad
  • Power Supply
    90 to 264VAC
  • Note
    Beam Height: 68.2 mm

Physical Properties

  • Power Supply Dimension
    238 x 146 x 94 mm3
  • Power Supply Weight
    2.2 kg
  • Dimension
    209 x 88 x 74 mm3(L x W x H)
  • Weight
    1.6 Kg

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
