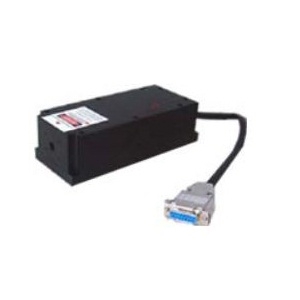

AZURE-OEM635N

Laser by AZURE Photonics
Request Quote

Note: Your Quotation Request will be directed to AZURE Photonics.

The AZURE-OEM635N from AZURE Photonics is a Laser with Wavelength 457 ±1 nm, Power 3000 to 5000 mW, Output Power (CW) 3000 to 5000 mW, Operating Temperature 22.5 Degree C. More details for AZURE-OEM635N can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AZURE-OEM635N
  • Manufacturer
    AZURE Photonics

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Entertainment, Environmental
  • Operation Mode
    CW laser
  • Wavelength
    457 ±1 nm
  • Wavelength Accuracy
    ±1 nm
  • Power
    3000 to 5000 mW
  • Output Power (CW)
    3000 to 5000 mW
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Blue
  • Transverse Mode
    Near TEM00
  • Beam Divergence :
    5 mrad
  • Beam Quality Factor (M2) :
    <20
  • Current
    0 to 1.5 A
  • Warm up time
    <5 Min
  • Analog Modulation
    TTL Analog 1Hz to 5kHz,1Hz to 10kHz, 1kHz to 30kHz, and TTL on/off
  • Voltage
    2 V

Physical Properties

  • Dimension
    172 x 70 x 50 mm with TEC
  • Beam Area
    27.4 with TEC
  • Beam Diameter
    7.0 x 7.0 mm

Environmental Conditions

  • Operating Temperature
    22.5 Degree C
