AZURE-P1047III

Laser by AZURE Photonics
389 more products from this company
Request Quote

Note: Your Quotation Request will be directed to AZURE Photonics.

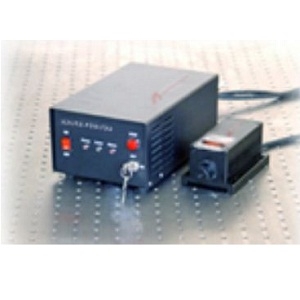

The AZURE-P1047III from AZURE Photonics is a Laser with Wavelength 1047 nm, Power 4500 W, Output Power (Pulsed) 4500 W, Pulse Energy 0.01 to 0.05 mJ, Pulse Width 10 nS. More details for AZURE-P1047III can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AZURE-P1047III
  • Manufacturer
    AZURE Photonics

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Entertainment, Environmental
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1047 nm
  • Power
    4500 W
  • Output Power (Pulsed)
    4500 W
  • Pulse Energy :
    0.01 to 0.05 mJ
  • Pulse Energy
    0.01 to 0.05 mJ
  • Pulse Width
    10 nS
  • Technology
    Q-Switched Laser
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1.5 mrad
  • Warm up time
    10 Min
  • Power Stability
    1 to 5 %
  • Power Supply
    90 to 264 V
  • Note
    Beam Height : 24.8 mm

Physical Properties

  • Power Supply Dimension
    133 x 130 x 65 mm
  • Power Supply Weight
    1.2 Kg
  • Dimension
    140.8 x 73 x 46.2 mm
  • Weight
    0.6 Kg
  • Beam Diameter
    1.5 mm

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
