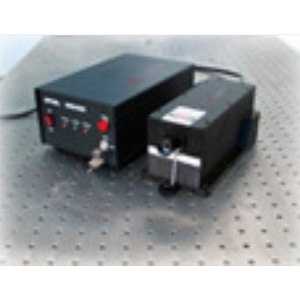

AZURE-P1064N

Laser by AZURE Photonics
389 more products from this company
Request Quote

Note: Your Quotation Request will be directed to AZURE Photonics.

The AZURE-P1064N from AZURE Photonics is a Laser with Wavelength 1064 nm, Power 1.5 to 2.5 W, Output Power (Pulsed) 1.5 to 2.5 W, Pulse Energy 150 to 250 J, Pulse Width 8 ns. More details for AZURE-P1064N can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AZURE-P1064N
  • Manufacturer
    AZURE Photonics
  • Description
    Passively Q-switched Laser at 1064 nm

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate), OEM Laser Module
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1064 nm
  • Power
    1.5 to 2.5 W
  • Output Power (Pulsed)
    1.5 to 2.5 W
  • Pulse Energy :
    150 to 250 J
  • Pulse Width
    8 ns
  • Repetition Rate
    5 to 15 KHz
  • Technology
    Q-Switched Laser
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1.5 mrad
  • Peak Power
    20 to 60 W
  • Power Supply
    90 to 264 V
  • Note
    Beam Height : 68.2 mm

Physical Properties

  • Power Supply Dimension
    215 x 108 x 122 mm
  • Power Supply Weight
    2.145 Kg
  • Dimension
    240 x 99 x 94 mm
  • Weight
    2.6 Kg
  • Beam Diameter
    2 mm

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
