AZURE-P1064Q-

Laser by AZURE Photonics
Request Quote

Note: Your Quotation Request will be directed to AZURE Photonics.

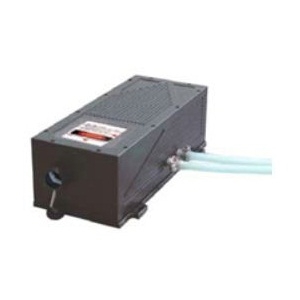

The AZURE-P1064Q- from AZURE Photonics is a Laser with Wavelength 1064 ±1 nm, Power 100 to 300 W, Output Power (Pulsed) 100 to 300 W, Pulse Energy 6.6 to 20 uJ, Pulse Width 200 nS. More details for AZURE-P1064Q- can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AZURE-P1064Q-
  • Manufacturer
    AZURE Photonics

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Entertainment, Environmental
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1064 ±1 nm
  • Wavelength Accuracy
    ±1 nm
  • Power
    100 to 300 W
  • Output Power (Pulsed)
    100 to 300 W
  • Pulse Energy :
    6.6 to 20 uJ
  • Pulse Energy
    6.6 to 20 uJ
  • Pulse Width
    200 nS
  • Repetition Rate
    1 to 100 KHz
  • Technology
    Q-Switched Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Beam Divergence :
    3.5 mrad
  • Warm up time
    <10 Min
  • Power Stability
    <3%,<5%
  • Peak Power
    33 to 100 W
  • Power Supply
    90 to 264 VAC

Physical Properties

  • Power Supply Dimension
    460 x 320 x 180 mm3
  • Power Supply Weight
    14.3 kg
  • Dimension
    375 x 165 x 105 mm3
  • Weight
    7.8 Kg
  • Beam Area
    65 mm2
  • Beam Diameter
    15 mm

Environmental Conditions

  • Cooling Method
    Water Cooled
  • Operating Temperature
    15 to 35 Degree C
