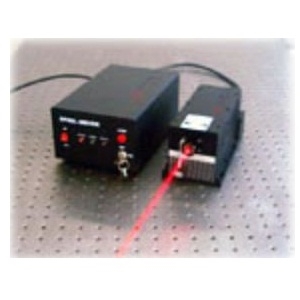

AZURE-R635N

Laser by AZURE Photonics
Request Quote

Note: Your Quotation Request will be directed to AZURE Photonics.

The AZURE-R635N from AZURE Photonics is a Laser with Wavelength 635 ±5 nm, Power 2000 to 3000 mW, Output Power (CW) 2000 to 3000 mW, Operating Temperature 10 to 35 Degree C. More details for AZURE-R635N can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AZURE-R635N
  • Manufacturer
    AZURE Photonics

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Entertainment, Environmental
  • Operation Mode
    CW laser
  • Wavelength
    635 ±5 nm
  • Wavelength Accuracy
    ±5 nm
  • Power
    2000 to 3000 mW
  • Output Power (CW)
    2000 to 3000 mW
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Red
  • Transverse Mode
    Near TEM00
  • Beam Divergence :
    5 mrad
  • Beam Quality Factor (M2) :
    <20
  • Warm up time
    <5 Min
  • Analog Modulation
    TTL on/off 1kHz to 1kHz,1kHz to 10kHz, 1kHz to 30kHz, and Analog Modulation Option
  • Power Stability
    <3%,<5%,<10%
  • Power Supply
    90 to 264 VAC

Physical Properties

  • Power Supply Dimension
    238 x 146 x 102 mm3
  • Power Supply Weight
    2.3 kg
  • Dimension
    240 x 99 x 94 mm3
  • Weight
    2.6 Kg
  • Beam Area
    68.2 mm2

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
