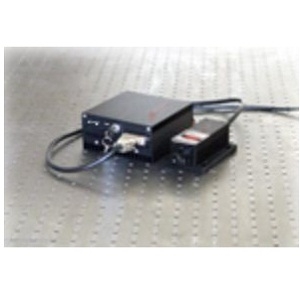

AZURE-S1342III

Laser by AZURE Photonics
389 more products from this company
Request Quote

Note: Your Quotation Request will be directed to AZURE Photonics.

The AZURE-S1342III from AZURE Photonics is a Laser with Wavelength 1342 nm, Power 0.001 to 0.2 W, Output Power (CW) 0.001 to 0.2 W, Operating Temperature 15 to 35 Degree C. More details for AZURE-S1342III can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AZURE-S1342III
  • Manufacturer
    AZURE Photonics
  • Description
    Single Longitudinal Mode Infrared Laser at 1342 nm

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate), OEM Laser Module
  • Application Industry
    Scientific / Research, Communications
  • Operation Mode
    CW Laser
  • Wavelength
    1342 nm
  • Spectral Width :
    0.00001 nm
  • Power
    0.001 to 0.2 W
  • Output Power (CW)
    0.001 to 0.2 W
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1.5 mrad
  • Gain Medium Type
    Solid State Laser
  • Warm up time
    10 Min
  • Power Stability
    1 to 5 %
  • Pointing Stability :
    0.05 mrad
  • RMS Noise Power
    0.5% RMS
  • Power Supply
    90 to 264 V
  • Note
    Beam Height : 27.4 mm

Physical Properties

  • Power Supply Dimension
    133 x 130 x 65 mm
  • Power Supply Weight
    1.2 Kg
  • Dimension
    140.8 x 73 x 46.2 mm
  • Weight
    0.6 Kg
  • Beam Diameter
    1.5 mm

Environmental Conditions

  • Operating Temperature
    15 to 35 Degree C
