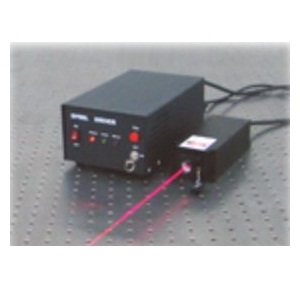

AZURE-S671FN

Laser by AZURE Photonics
389 more products from this company
Request Quote

Note: Your Quotation Request will be directed to AZURE Photonics.

The AZURE-S671FN from AZURE Photonics is a Laser with Wavelength 671 nm, Power 0.001 to 0.4 W, Output Power (CW) 0.001 to 0.4 W, Operating Temperature 10 to 35 Degree C. More details for AZURE-S671FN can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AZURE-S671FN
  • Manufacturer
    AZURE Photonics
  • Description
    Single Longitudinal Mode Red Laser at 671 nm

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing, Entertainment
  • Operation Mode
    CW Laser
  • Wavelength
    671 nm
  • Spectral Width :
    0.00001 nm
  • Power
    0.001 to 0.4 W
  • Output Power (CW)
    0.001 to 0.4 W
  • Fiber Coupled
    Yes
  • Laser Color
    Red
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1.2 mrad
  • Gain Medium Type
    Solid State Laser
  • Warm up time
    10 Min
  • Power Stability
    1 to 5 %
  • Pointing Stability :
    0.05 mrad
  • RMS Noise Power
    0.5% RMS
  • Power Supply
    90 to 264 V
  • Voltage
    5 V
  • Note
    Beam Height : 27.4 mm

Physical Properties

  • Power Supply Dimension
    238 x 146 x 102 mm
  • Power Supply Weight
    2.3 Kg
  • Dimension
    197 x 108 x 50 mm
  • Weight
    2 Kg
  • Beam Diameter
    2 mm

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
