145-3-650

Laser by BEA Lasers
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to BEA Lasers.

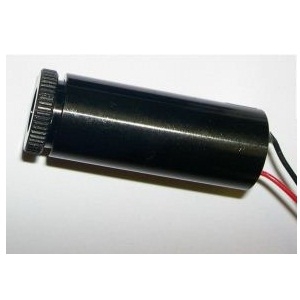

The 145-3-650 from BEA Lasers is a Laser with Wavelength 650 nm, Power 2.5 to 3 mW, Output Power (CW) 2.5 to 3 mW. More details for 145-3-650 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    145-3-650
  • Manufacturer
    BEA Lasers
  • Description
    145 Series Laser Diode Modules

General Parameters

  • Type
    Laser Module, Alignment Laser
  • Configuration
    OEM Laser Module
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing, Environmental
  • Application
    Alignment, Cutting, Drilling, Laser Surveying, Machine Vision, Remote Sensing, Metrology
  • Operation Mode
    CW Laser
  • Wavelength
    650 nm
  • Power
    2.5 to 3 mW
  • Output Power (CW)
    2.5 to 3 mW
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Red
  • Beam Divergence :
    5 mrad
  • Beam Shape
    Dot
  • Current
    35 mA
  • Laser Class
    Class IIIa
  • Output Aperture
    5 mm
  • Power Supply
    3 to 4.5 VDC
  • Voltage
    4 to 6 VDC

Physical Properties

  • Dimension
    40 x 16 mm(D x L)
  • Weight
    22 g
  • Beam Area
    100 µm
