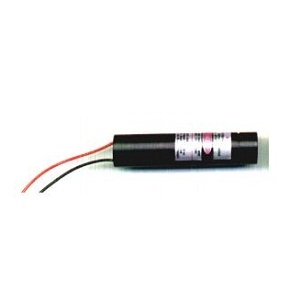

150-1-635

Laser by BEA Lasers

Note: Your Quotation Request will be directed to BEA Lasers.

The 150-1-635 from BEA Lasers is a Laser with Wavelength 635 nm, Power 0.7 to 0.99 mW, Output Power (CW) 0.7 to 0.99 mW, Operating Temperature -10 to 50 Degree C, Storage Temperature -20 to 65 Degree C. More details for 150-1-635 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    150-1-635
  • Manufacturer
    BEA Lasers

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    635 nm
  • Power
    0.7 to 0.99 mW
  • Output Power (CW)
    0.7 to 0.99 mW
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Red
  • Beam Shape
    Cross Hair, Circle, Dot
  • Current
    40 mA
  • Laser Class
    Class II
  • Power Supply
    3 to 6 VDC
  • Voltage
    4.5 to 9 VDC

Physical Properties

  • Dimension
    12.7 x 51 mm(D x L)
  • Weight
    35 g
  • Fiber length
    90 mm

Environmental Conditions

  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -20 to 65 Degree C
