Dawa Series Laser

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Beamtech Optronics.

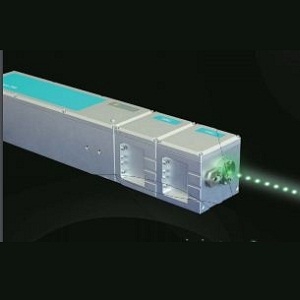

The Dawa Series Laser from Beamtech Optronics is a Laser with Wavelength Up to 1064 nm, Pulse Energy Up to 300 mJ, Pulse Width 5 to 9 ns, Repetition Rate Up to 20 Hz, Operating Temperature 10 to 30 Degree C. More details for Dawa Series Laser can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Dawa Series Laser
  • Manufacturer
    Beamtech Optronics
  • Description
    Dawa series is a lamp pumped EO-Q switched nanosecond Nd:YAG laser system with compact size and high reliability

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated), OEM Laser Module
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing, Medical, Entertainment, Defense / Military & Aerospace, Environmental
  • Application
    Welding, Cutting, Drilling, Marking, Engraving, Cleaning, Trimming, Laser Surgery, Dermatology, Oncology, Ophthalmology, Laser Ablation, Machine Vision, Display device, Spectroscopy, LiDAR, Fluorescence, Laser Printers, Remote Sensing, Monitoring, Imaging
  • Operation Mode
    Pulsed Laser
  • Wavelength
    Up to 1064 nm
  • Pulse Energy :
    Up to 300 mJ
  • Pulse Energy
    Up to 300 mJ
  • Pulse Width
    5 to 9 ns
  • Repetition Rate
    Up to 20 Hz
  • Technology
    DPSS Laser, Q-Switched Laser, Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Ultraviolet, Green, Infrared
  • Beam Divergence :
    1 mrad
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YAG
  • Laser Gain Medium
    Ti:Sapphire Laser
  • Current
    10 A
  • Modulation Frequency
    50 to 60 Hz
  • Pointing Stability :
    50 µrad
  • Voltage
    220 V-50/60 Hz-10 A

Physical Properties

  • Laser Head Dimension
    352 x 99 x 95 nm (Single Wavelength), 499 x 99 x 95 nm (Di-Wavelength), 579 x 99 x 95 nm (Tri-Wavelength)
  • Power Supply Dimension
    474 x 215 x 476 nm
  • Beam Diameter
    5 to 7 mm
  • Fiber length
    Cable Length: 3 m

Environmental Conditions

  • Cooling Method
    Water-Cooled
  • Operating Temperature
    10 to 30 Degree C
  • Storage Temperature
    0 to 50 Degree C
