UVL-FB

Laser by Becker & Hickl

Note: Your Quotation Request will be directed to Becker & Hickl.

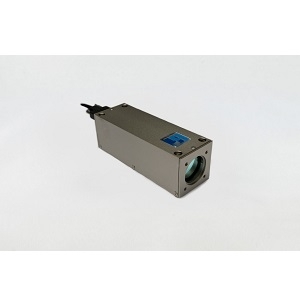

The UVL-FB from Becker & Hickl is a Laser with Wavelength 250 nm, 270 nm, 290 nm, 310 nm, 330 nm, Power 50 µW, Pulse Width 580 to 700 ps, Repetition Rate 20 MHz, 50 MHz, 80 MHz, Operating Temperature 0 to 40 Degree C. More details for UVL-FB can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    UVL-FB
  • Manufacturer
    Becker & Hickl
  • Description
    250 to 330 nm Ultraviolet Laser Module

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated), OEM Laser Module
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Scientific / Research, Defense / Military & Aerospace, Environmental
  • Application
    Fluorescence, Test & Measurement, Monitoring, Surveillance
  • Operation Mode
    Pulsed Laser
  • Wavelength
    250 nm, 270 nm, 290 nm, 310 nm, 330 nm
  • Power
    50 µW
  • Pulse Width
    580 to 700 ps
  • Repetition Rate
    20 MHz, 50 MHz, 80 MHz
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Ultraviolet
  • Duty Cycle :
    10 to 30%
  • Connectors
    SMA
  • Current
    300 to 400 mA
  • Voltage
    0 to 15 V

Physical Properties

  • Dimension
    40 x 40 x 120 mm

Environmental Conditions

  • Operating Temperature
    0 to 40 Degree C

Technical Documents
