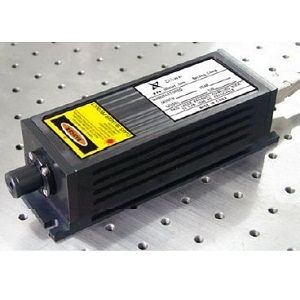

MB 1342-5000

Laser by ZK Laser
Request Quote

Note: Your Quotation Request will be directed to ZK Laser.

The MB 1342-5000 from ZK Laser is a Laser with Wavelength 1342 nm, Power 5000 mW, Operating Temperature 10 to 35 Degree C. More details for MB 1342-5000 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MB 1342-5000
  • Manufacturer
    ZK Laser
  • Description
    MB 1342 All Solid State Series Infrared Lasers

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Medical, Scientific / Research, Entertainment
  • Application
    Medical Imaging, Imaging, Laser Projectors, Laser Light Shows, Laser Surgery, Fluorescence, Microscopy, DNA Sequencing
  • Operation Mode
    CW Laser
  • Wavelength
    1342 nm
  • Spectral Width :
    0.1 cm-1
  • Power
    5000 mW
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1.2 mrad
  • Gain Medium Type
    Solid State Laser
  • Warm up time
    5 min.
  • Power Consumption
    300 W
  • Pointing Stability :
    0.05 mrad
  • Power Supply
    80 to 260 VAC

Physical Properties

  • Laser Head Dimension
    320 x 120 x 120 mm
  • Laser Head Weight
    3 Kg
  • Power Supply Dimension
    420 x 360 x 80 mm
  • Power Supply Weight
    5 Kg
  • Beam Diameter
    1.2 mm

Environmental Conditions

  • Cooling Method
    Air Cooled
  • Operating Temperature
    10 to 35 Degree C
