808nm-5

Laser by Berlin Lasers
232 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Berlin Lasers.

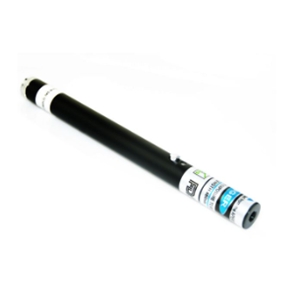

The 808nm-5 from Berlin Lasers is a Laser with Wavelength 808 nm, Power 5 mW, Operating Temperature 10 to 30 Degree C, Storage Temperature -10 to 50 Degree C. More details for 808nm-5 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    808nm-5
  • Manufacturer
    Berlin Lasers
  • Description
    808 nm Infrared Laser Pointer with 5 mW Power

General Parameters

  • Type
    Laser Pointer
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific Research, Medical, Defense / Military & Aerospace, Environmental, Communications
  • Application
    Polymer Processing, Spectroscopy, Non-Invasive Medical Diagnosis, Laser Scalpel, Surveillance, Remote Sensing, Free Space Communications and Pumping OPOs etc
  • Operation Mode
    CW Laser
  • Wavelength
    808 nm
  • Spectral Width :
    <0.1 nm
  • Power
    5 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Polarization ratio :
    >100:1
  • Transverse Mode
    TE00
  • Beam Divergence :
    <2.5 mrad
  • Beam Quality Factor (M2) :
    <1.2
  • Laser Class
    Class III
  • Warm up time
    <0.5 minutes
  • Voltage
    3 VDC
  • Warranty
    6 Months
  • Note
    Range in darkness: 100 to 600 meters, Lifetime: 5000 hours

Physical Properties

  • Laser Head Dimension
    14 x 171 mm (Dia. x L)
  • Beam Diameter
    <2.8 mm

Environmental Conditions

  • Operating Temperature
    10 to 30 Degree C
  • Storage Temperature
    -10 to 50 Degree C
