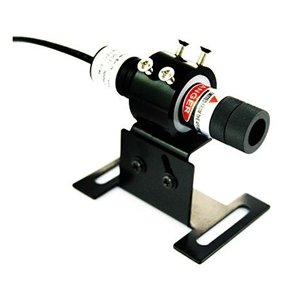

980-dot

Laser by Berlin Lasers
232 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Berlin Lasers.

The 980-dot from Berlin Lasers is a Laser with Wavelength 980 nm, Power 5 mW, Operating Temperature 10 to 30 Degree C, Storage Temperature -10 to 50 Degree C. More details for 980-dot can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    980-dot
  • Manufacturer
    Berlin Lasers
  • Description
    980 nm Infrared Dot-Projecting Laser Alignment with 5 mW Power

General Parameters

  • Type
    Alignment Laser
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Drilling
  • Operation Mode
    CW Laser
  • Wavelength
    980 nm
  • Power
    5 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Transverse Mode
    TE
  • Beam Divergence :
    6 mrad
  • Beam Shape
    Dot
  • Current
    <600 mA
  • Power Supply
    100 to 240 VA, 50 to 60 Hz
  • Voltage
    3 VDC
  • Warranty
    6 Months
  • Note
    Lifetime: >5000 hours

Physical Properties

  • Power Supply Dimension
    70 x 46 x 27 mm
  • Dimension
    16 x 71 mm (Dia. x L)
  • Beam Diameter
    <2 mm, <0.5 mm

Environmental Conditions

  • Operating Temperature
    10 to 30 Degree C
  • Storage Temperature
    -10 to 50 Degree C
