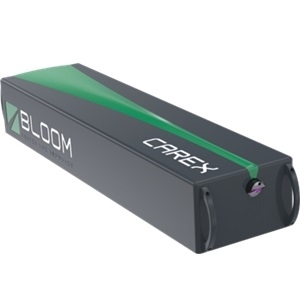

CAREX 30-343

Laser by BLOOM LASERS
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to BLOOM LASERS.

CAREX, the flexible nanosecond UV fiber laser, delivers fully programmable pulses combining high power and high pulse repetition rates. It is especially designed for high precision micro-processing.CAREX combines process agility and throughput for demanding applications such as multi-material stack processing. It delivers pulses from 2 ns up to 20 ns with any arbitrary temporal shape and possible burst operation. The innovative fast electronic design enables instantaneous switching between two pulses patterns for optimized complex material processing. The fiber technology combined with the simply efficient laser head architecture makes CAREX a robust, flexible, and cost-effective UV laser for most demanding industrial applications. Manufactured with field proven and qualified components, good practices and high-quality, CAREX is the right answer to 24/7 operations in extended production cycle environments.

Product Specifications

View similar products

Product Details

  • Part Number
    CAREX 30-343
  • Manufacturer
    BLOOM LASERS
  • Description
    High power nanosecond UV laser with programmable pulses for high-speed precision micromachining

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Cutting, Drilling, Etching, Surface Treatment, Scribing, Material processing
  • Operation Mode
    Pulsed Laser
  • Wavelength
    343 nm
  • Wavelength Accuracy
    ±0.1 nm
  • Power
    20 to 30 W
  • Pulse Energy :
    up to 300 µJ
  • Pulse Energy
    up to 300 µJ
  • Pulse Width
    2 to 20 ns
  • Repetition Rate
    Single-shot to 500 kHz
  • Pulse to Pulse Stability
    <3% rms
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Ultraviolet
  • Polarization
    Vertical
  • Polarization Orientation
    Linear
  • Polarization ratio :
    >100:1
  • Transverse Mode
    TEM00
  • Beam Divergence :
    <0.3 mrad
  • Beam Quality Factor (M2) :
    <1.2
  • Warm up time
    <30 min (Cold Start), <10 min (Warm Start)
  • Power Consumption
    <900 W
  • Power Stability
    <2%
  • Peak Power
    up to 40 kW
  • Pointing Stability :
    <25 µrad
  • Interface
    USB, RS-232, Ethernet
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz
  • Note
    Waist Location: ±6 m, Astigmatism: <30%, Minimum Cooling Power: 700 W

Physical Properties

  • Package
    Benchtop / Rackmount
  • Laser Head Dimension
    1146 x 250 x 169 mm (L x W x H)
  • Laser Head Weight
    50 kg
  • Power Supply Dimension
    506 x 483 x 177 mm (L x W x H)
  • Power Supply Weight
    25 kg
  • Beam Diameter
    3.5 mm

Environmental Conditions

  • Relative Humidity
    10 to 95%
  • Altitude
    Sea level to 11000 meter
  • Operating Temperature
    15 to 35 Degree C
  • Storage Temperature
    0 to 50 Degree C
