FTEC2 488-25

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Blue Sky Research.

The FTEC2 488-25 from Blue Sky Research is a Laser with Wavelength 488 nm, Power 25 mW, Output Power (CW) 25 mW, Operating Temperature 10 to 40 Degree C. More details for FTEC2 488-25 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FTEC2 488-25
  • Manufacturer
    Blue Sky Research
  • Description

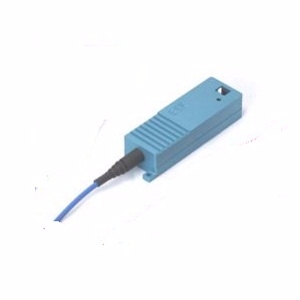

    FIBERTEC II Fiber Coupled Diode Laser Modules

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Medical, Scientific / Research, Defense / Military & Aerospace, Environmental, Automotive / Industrial & Manufacturing
  • Application
    Bio-Medical, Flow Cytometry, Microscopy, LiDAR, Laser Rangefinders, Particle Analysis, Inspection & Measurement, Metrology
  • Operation Mode
    CW Laser
  • Wavelength
    488 nm
  • Wavelength Accuracy
    ± 5 nm
  • Power
    25 mW
  • Output Power (CW)
    25 mW
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Blue
  • Beam Shape
    Circular
  • Power Stability
    0.5% to 2.0%
  • RMS Noise Power
    0.5% rms
  • RoHS
    Yes

Environmental Conditions

  • Relative Humidity
    70 % (Non-Condensing)
  • Operating Temperature
    10 to 40 Degree C
