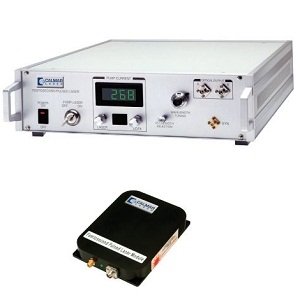

Mendocino 1550 nm(Medium Power 10 mW - 200 mW)

Laser by Calmar Laser

Note: Your Quotation Request will be directed to Calmar Laser.

The Mendocino 1550 nm(Medium Power 10 mW - 200 mW) from Calmar Laser is a Laser with Wavelength 1550 nm, Power 10 to 200 mW, Output Power (Pulsed) 10 to 200 mW, Pulse Width 0.1 ps, Repetition Rate 10 to 100 MHz. More details for Mendocino 1550 nm(Medium Power 10 mW - 200 mW) can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Mendocino 1550 nm(Medium Power 10 mW - 200 mW)
  • Manufacturer
    Calmar Laser
  • Description
    C-band Femtosecond Fiber Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Femtosecond Lasers
  • Application Industry
    Communications, Scientific / Research
  • Application
    Optical Fiber Communication, Test & Measurement, Spectroscopy, Atomic & Molecular Physics, Metrology
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1550 nm
  • Spectral Width :
    30 to 40 nm
  • Power
    10 to 200 mW
  • Output Power (Pulsed)
    10 to 200 mW
  • Pulse Width
    0.1 ps
  • Repetition Rate
    10 to 100 MHz
  • Technology
    Mode-Locked Laser
  • Tunable
    yes
  • Fiber Coupled
    Yes
  • Mode
    Single Mode, Polarization Maintaining
  • Laser Color
    Infrared
  • Gain Medium Type
    Solid State Laser
  • Peak Power
    1000 to 10000 W
  • Power Supply
    85 to 264 VAC

Physical Properties

  • Package
    Benchtop
  • Laser Head Dimension
    20.3 x 12.7 x 4.3 cm(W x D x H)
  • Power Supply Dimension
    34 x 40 x 9 cm(W x D x H)

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
