CP-TIM-201-3CR-635

Laser by Calpac Lasers
Request Quote

Note: Your Quotation Request will be directed to Calpac Lasers.

The CP-TIM-201-3CR-635 from Calpac Lasers is a Laser with Wavelength 635 nm, Power 3 mW, Output Power (CW) 3 mW, Operating Temperature -10 to 40 Degree C, Storage Temperature -30 to 50 Degree C. More details for CP-TIM-201-3CR-635 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CP-TIM-201-3CR-635
  • Manufacturer
    Calpac Lasers
  • Description

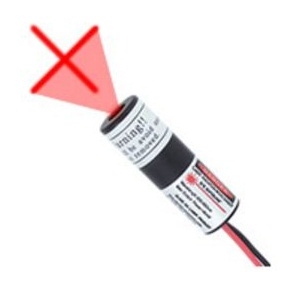

    Red Cross Hair Line Laser Diode Class IIIA: 3mW/635nm

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head, OEM Laser Module
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing
  • Application
    Life Science, Welding, Cutting, Drilling, Marking, Engraving, Cleaning, Trimming
  • Operation Mode
    CW Laser
  • Wavelength
    635 nm
  • Power
    3 mW
  • Output Power (CW)
    3 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Shape
    Line
  • Current
    30 to 50 mA
  • Laser Class
    Class IIIa
  • Voltage
    3 VDC
  • Note
    Wire Length: 200 to 250 mm

Physical Properties

  • Dimension
    32.5 x 10.5 mm

Environmental Conditions

  • Operating Temperature
    -10 to 40 Degree C
  • Storage Temperature
    -30 to 50 Degree C
