CP-TIM-622-3L

Laser by Calpac Lasers
Request Quote

Note: Your Quotation Request will be directed to Calpac Lasers.

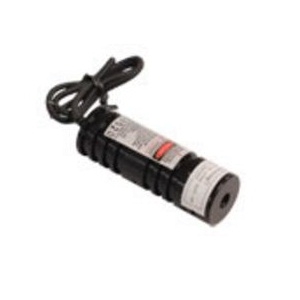

The CP-TIM-622-3L from Calpac Lasers is a Laser with Wavelength 532 nm, Power 5 mW, Output Power (CW) 5 mW, Operating Temperature -20 to 30 Degree C. More details for CP-TIM-622-3L can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CP-TIM-622-3L
  • Manufacturer
    Calpac Lasers
  • Description
    5mW (532nm) Class: IIIA - Green Line Laser Diode

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head, OEM Laser Module
  • Application Industry
    Automotive / Industrial & Manufacturing, Medical
  • Application
    Welding, Cutting, Drilling, Marking, Engraving, Cleaning, Trimming, Laser Surgery, Dermatology, Oncology, Ophthalmology
  • Operation Mode
    CW Laser
  • Wavelength
    532 nm
  • Power
    5 mW
  • Output Power (CW)
    5 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Beam Divergence :
    2 mrad
  • Beam Shape
    Line
  • Current
    400 mA
  • Laser Class
    Class IIIa
  • Voltage
    3 VDC

Physical Properties

  • Dimension
    58 x 20 mm

Environmental Conditions

  • Operating Temperature
    -20 to 30 Degree C
