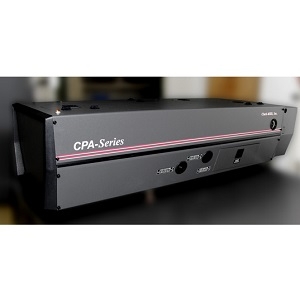

CPA-2161

Laser by Clark-MXR, Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Clark-MXR, Inc.

The CPA-2161 from Clark-MXR, Inc is a Laser with Wavelength 775 nm, Pulse Width <150 fs, Repetition Rate 3 to 6 kHz. More details for CPA-2161 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CPA-2161
  • Manufacturer
    Clark-MXR, Inc
  • Description
    775 nm Near-Infrared Pulsed Laser System

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Femtosecond Lasers
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing
  • Application
    Nonlinear Spectroscopy, Micromachining, Pumping OPA/NOPA, Laser Ablation Spectroscopy, mass-Spectrometry
  • Operation Mode
    Pulsed Laser
  • Wavelength
    775 nm
  • Pulse Width
    <150 fs
  • Repetition Rate
    3 to 6 kHz
  • Technology
    Solid State Laser
  • Tunable
    Yes
  • Fiber Coupled
    Yes
  • Laser Color
    Near-Infrared
  • Polarization
    Horizontal
  • Polarization Orientation
    Linear
  • Transverse Mode
    TEM00
  • Beam Divergence :
    <100 µrad
  • Beam Quality Factor (M2) :
    1.1 to 1.3
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Erbium-Doped Fiber
  • Laser Gain Medium
    Ti:Sapphire
  • Current
    20 to 40 A
  • Laser Class
    Class IV
  • Energy Stability
    <1% rms
  • Interface
    Ethernet
  • Power Supply
    220 VAC
  • Note
    Aspect Ratio: 100:1

Physical Properties

  • Package
    Benchtop
  • Laser Head Dimension
    48 x 20 x 12 Inches (L x W x H)
  • Power Supply Dimension
    28 x 23 x 38 Inches (L x W x H)
