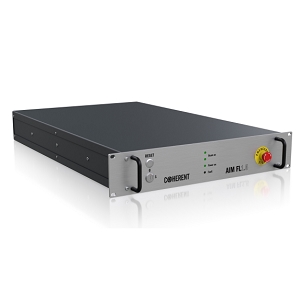

The AIM FL Series from Coherent Corp. are Fiber Lasers that operate at a wavelength of 1070 nm. They deliver an output power of 0.5 W - 3 W and have a wavelength accuracy of ±10 nm. These lasers have a power stability of ±1.5 % and power range of 5% - 100%. They have a pulse frequency range from continuous wave to 5 kHz and laser beam quality of up to 0.4 mm x mrad. These lasers have an output fiber with a core diameter of 20 μm and length of 10 m.
The AIM FL Series operate in continuous wave & modulated modes and can be controlled via QBH/QD style standard connector interface. They require an AC supply voltage of 230 V or 380 V - 480 V and consume below 9 kW of power. These water-cooled lasers are available in a module that measures 692 (L) mm x 482.6 (W) mm x 88 (H) mm or 692 (L) mm x 482.6 (W) mm x 88 (H) mm and are ideal for welding of challenging materials (high-strength steel, aluminum, copper).
