ARM FL Series

Laser by Coherent Corp.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Coherent Corp..

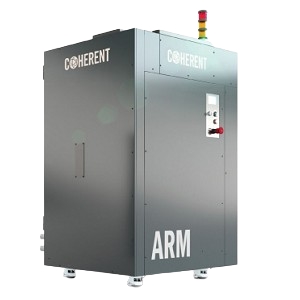

The ARM FL Series from Coherent Corp. is a Laser with Wavelength 1070 nm, Power 2000 to 10000 W, Operating Temperature 5 to 40 Degree C. More details for ARM FL Series can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ARM FL Series
  • Manufacturer
    Coherent Corp.
  • Description
    500 W to 10000 kW Nominal Power High-Power Adjustable Ring Mode (ARM) Fiber Lasers with Beam Management

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    High-quality welding of challenging materials like high-strength steel, aluminum, or copper, Cutting
  • Operation Mode
    CW/Modulated
  • Wavelength
    1070 nm
  • Wavelength Accuracy
    ±10 nm
  • Power
    2000 to 10000 W
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Multi Mode
  • Laser Color
    Infrared
  • Rise/Fall Time :
    <30 µs
  • Modulation Frequency
    CW to 10 kHz
  • Power Stability
    ±1%
  • Power Supply
    400 to 480 VAC

Physical Properties

  • Package
    Benchtop
  • Dimension
    794 x 1040 x 1067 mm, 794 x 1040 x 1565 mm (L x W x H)
  • Weight
    <460 to 620 kg
  • Fiber diameter
    Center D 100, Ring OD 290 or Center D 50, Ring OD 200
  • Fiber length
    20 to 30 m

Environmental Conditions

  • Operating Temperature
    5 to 40 Degree C
