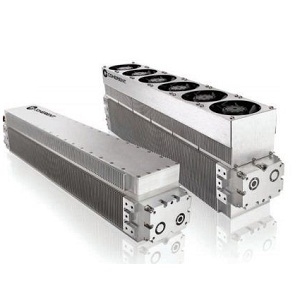

Diamond C-55A

Laser by Coherent Corp.
534 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Coherent Corp..

The Diamond C-55A from Coherent Corp. is a Laser with Wavelength 10.55 to 10.63 µm, Power 55 W, Output Power (CW) 55 W, Operating Temperature 5 to 40°C, Storage Temperature -10 to 60°C. More details for Diamond C-55A can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Diamond C-55A
  • Manufacturer
    Coherent Corp.
  • Description
    Low Power CO2 OEM Lasers

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated), OEM Laser Module
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Marking, Engraving, Cutting
  • Operation Mode
    CW Laser
  • Wavelength
    10.55 to 10.63 µm
  • Power
    55 W
  • Output Power (CW)
    55 W
  • Technology
    Gas Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Polarization Orientation
    Linear
  • Beam Divergence :
    7.5 ±0.5 mrad
  • Gain Medium Type
    Gas Laser
  • Duty Cycle :
    0 to 100%
  • Laser Cavity Material
    CO2
  • Laser Gain Medium
    Molecular Lasers
  • Modulation Frequency
    0 to 25 kHz
  • Power Stability
    ±5 %
  • Voltage
    48 VDC

Physical Properties

  • Dimension
    538 x 92.5 x 154.5 mm (21.2 x 3.64 x 6.08 in.)
  • Weight
    10.0 kg (22.0 lbs.)
  • Beam Diameter
    1.8 ±0.2 mm

Environmental Conditions

  • Cooling Method
    Air cooled
  • Operating Temperature
    5 to 40°C
  • Storage Temperature
    -10 to 60°C
