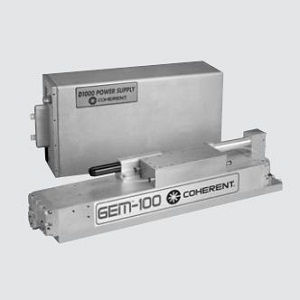

DIAMOND GEM-100L (10.6 µm)

Laser by Coherent Corp.

Note: Your Quotation Request will be directed to Coherent Corp..

The DIAMOND GEM-100L (10.6 µm) from Coherent Corp. is a Laser with Power 100 W, Wavelength 10.55 to 10.63 µm, Output Power (CW) 100 W, Operating Temperature 15 to 30 Degree C. More details for DIAMOND GEM-100L (10.6 µm) can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DIAMOND GEM-100L (10.6 µm)
  • Manufacturer
    Coherent Corp.
  • Description
    Liquid-Cooled RF-Excited OEM Industrial CO2 Laser

General Parameters

  • Configuration
    Laser Head with Control Unit (Separate), OEM Laser Module
  • Type
    Laser System
  • Technology
    Gas Laser
  • Operation Mode
    CW Laser
  • Application
    Material processing, Food Sorting
  • Power
    100 W
  • Wavelength
    10.55 to 10.63 µm
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Output Power (CW)
    100 W
  • Gain Medium Type
    Gas Laser
  • Laser Cavity Material
    CO2
  • Laser Gain Medium
    Molecular Laser
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Beam Divergence :
    5.0 mrad
  • Transverse Mode
    TEM00
  • Power Stability
    ±3%
  • Voltage
    48 VDC

Physical Properties

  • Laser Head Weight
    10.7 kg (23.5 lbs.)
  • Power Supply Weight
    8.8 kg (19.5 lbs.)
  • Beam Diameter
    3.8 ±0.4

Environmental Conditions

  • Operating Temperature
    15 to 30 Degree C

Technical Documents
