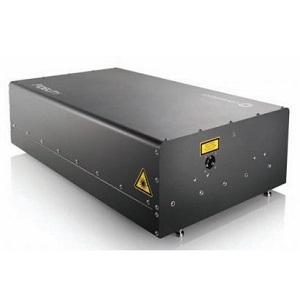

Fidelity HP

Laser by Coherent Corp.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Coherent Corp..

The Fidelity HP from Coherent Corp. is a Laser with Wavelength 1040 nm, Power 10 to 18 W, Output Power (Pulsed) 10 to 18 W, Pulse Width 140 fs, Repetition Rate 80 MHz. More details for Fidelity HP can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Fidelity HP
  • Manufacturer
    Coherent Corp.
  • Description
    High Power Femtosecond Fiber Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Femtosecond Lasers
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing
  • Application
    Microscopy, Neuroscience, Pumping Source, Bio-Medical, Scribing, Surface Treatment
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1040 nm
  • Power
    10 to 18 W
  • Output Power (Pulsed)
    10 to 18 W
  • Pulse Width
    140 fs
  • Repetition Rate
    80 MHz
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Polarization
    Horizontal
  • Gain Medium Type
    Solid State Laser
  • Modulation Frequency
    50 to 60 Hz
  • RMS Noise Power
    0.25% rms
  • Interface
    RS-232, USB
  • Power Supply
    100 to 250 VAC, 50 to 60 Hz, 2 kW
  • Note
    Mounting: 19- Rack Mount

Physical Properties

  • Package
    Rack-Mount
  • Beam Diameter
    1.2 mm

Environmental Conditions

  • Cooling Method
    Air-Cooled
  • Relative Humidity
    95% (Non-Condensing)
  • Operating Temperature
    15 to 35°C
  • Storage Temperature
    0 to 40°C
