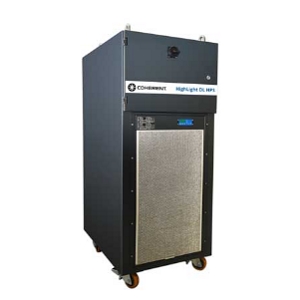

HighLight DL2000HPS

Laser by Coherent Corp.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Coherent Corp..

The HighLight DL2000HPS from Coherent Corp. is a Laser with Wavelength 980 nm, 1020 nm, Power 2000 W, Operating Temperature 10 to 40 Degree C, Storage Temperature 5 to 50 Degree C. More details for HighLight DL2000HPS can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    HighLight DL2000HPS
  • Manufacturer
    Coherent Corp.
  • Description
    All-In-One, Industrial Diode Laser for Material Processing Applications

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Environmental, Automotive / Industrial & Manufacturing
  • Application
    Cladding, Annealing, Welding
  • Operation Mode
    CW Laser
  • Wavelength
    980 nm, 1020 nm
  • Wavelength Accuracy
    ± 10 nm
  • Power
    2000 W
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Red, Near-Infrared
  • Beam Divergence :
    100 mm.mrad
  • Current
    14 A
  • Analog Modulation
    600 Hz
  • Power Stability
    ±2%
  • Interface
    Ethernet via PC
  • Power Supply
    3x AC 230/400 V ± 10 % 50/60 Hz PE or 3x AC 277/480 V ± 10 % 50/60 Hz PE

Physical Properties

  • Package
    Benchtop
  • Dimension
    670 x 1050 x 1760 mm (L x W x H)
  • Weight
    380 kg
  • Fiber diameter
    1000 µm
  • Fiber length
    <35 m

Environmental Conditions

  • Operating Temperature
    10 to 40 Degree C
  • Storage Temperature
    5 to 50 Degree C
