HighLight FL-ARM Series

Laser by Coherent Corp.

Note: Your Quotation Request will be directed to Coherent Corp..

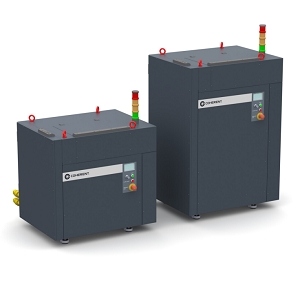

The HighLight FL-ARM Series from Coherent are high power fiber lasers that deliver an output power of 2 to 8 kW and offer excellent stability over an entire power range of 1 to 100%. They operate at a wavelength of 1070nm. These lasers are equipped with either a Fiber-Fiber-Switch (FFS) or Fiber-Fiber-Coupler (FFC) to maximize operational flexibility. This laser series is manufactured using Adjustable Ring Mode (ARM) technology and is available in two variants - midi and maxi, measuring 794 x 1040 x 1037 mm and 794 x 1040 x 1534 mm respectively without the signal tower. These lasers are suitable for high-quality welding of challenging materials like high-strength steel, aluminum, or copper, and cutting applications.

Product Specifications

View similar products

Product Details

  • Part Number
    HighLight FL-ARM Series
  • Manufacturer
    Coherent Corp.
  • Description
    2 to 8 kW High Power Fiber Lasers with Beam Management

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Material processing, Welding, Cutting
  • Operation Mode
    CW Laser
  • Wavelength
    1070 nm
  • Power
    2 to 8 kW
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Near-Infrared
  • Gain Medium Type
    Solid State Laser
  • Current
    12.5 to 36 A
  • Power Stability
    +/- 1 %
  • Interface
    QBH/QD
  • Power Supply
    400/440/480 VAC +/- 10%
  • Note
    Power Range: 1 - 100 %

Physical Properties

  • Dimension
    794 x 1040 x 1037 mm(Midi), 794 x 1040 x 1534 mm(Maxi)
  • Weight
    FFS: 520, 590, 640 kg, FFC: 460, 490, 520 kg
  • Fiber diameter
    100 µm( Center Dia.), 290 µm( Outer Dia.)
  • Fiber length
    10 to 35 m (FFS), 20 m (FFC)
