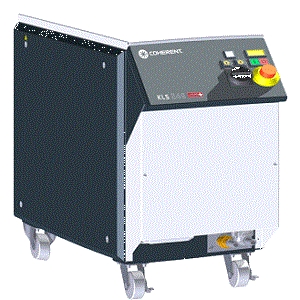

KLS-040 FC

Laser by Coherent Corp.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Coherent Corp..

The KLS-040 FC from Coherent Corp. is a Laser with Wavelength 1064 nm, Power 15 W, Output Power (Pulsed) 15 W, Pulse Energy 0.002 to 0.18 J, Pulse Width 0.012 to 0.3 ms. More details for KLS-040 FC can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    KLS-040 FC
  • Manufacturer
    Coherent Corp.
  • Description
    Pulsed Nd: YAG Laser 10 to 220W output

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Cutting, Drilling, Scribing, Welding, Material processing
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1064 nm
  • Power
    15 W
  • Output Power (Pulsed)
    15 W
  • Pulse Energy :
    0.002 to 0.18 J
  • Pulse Energy
    0.002 to 0.18 J
  • Pulse Width
    0.012 to 0.3 ms
  • Repetition Rate
    0.1 to 5000 Hz
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Yb:YAG
  • Laser Gain Medium
    Ytterbium Laser
  • Modulation Frequency
    50 to 60 Hz
  • Peak Power
    0.6 to 0.3 kW

Physical Properties

  • Weight
    200 kg
  • Beam Diameter
    2.5 mm

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
