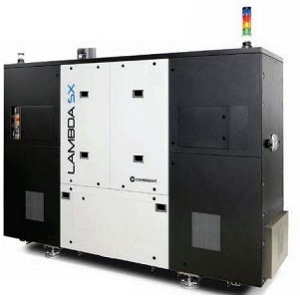

LAMBDA SX Series

Laser by Coherent Corp.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Coherent Corp..

The LAMBDA SX Series from Coherent Corp. is a Laser with Wavelength 248, 308 nm, Power 300 to 600 W, Output Power (Pulsed) 300 to 600 W, Pulse Energy 1000 mJ to 1050 mJ, Pulse Width 24 to 32 ns. More details for LAMBDA SX Series can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LAMBDA SX Series
  • Manufacturer
    Coherent Corp.
  • Description
    High Power/Very High Power Excimer Lasers

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Medical, Environmental, Entertainment
  • Application
    Drilling, Medical Imaging, Remote Sensing, Monitoring, Cladding, Cutting, Annealing, Display device, Gas Sensing
  • Operation Mode
    Pulsed laser
  • Wavelength
    248, 308 nm
  • Power
    300 to 600 W
  • Output Power (Pulsed)
    300 to 600 W
  • Pulse Energy :
    1000 mJ to 1050 mJ
  • Pulse Energy
    1000 mJ to 1050 mJ
  • Pulse Width
    24 to 32 ns
  • Repetition Rate
    300 to 600 Hz
  • Technology
    Excimer Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Ultraviolet
  • Beam Divergence :
    4.5 x 1.5 mrad(V x H)
  • Modulation Frequency
    50 to 60 Hz
  • Power Supply
    400 VAC, 400 VAC

Physical Properties

  • Dimension
    2800 x 850 x 2083 mm(110.2 x 33.3 x 82 in.)
  • Weight
    2000 kg, 2200 kg
  • Beam Area
    34 ±3.5 x 14 ±2 mm(V x H) to 35 ±3.5 x 13 ±2 mm(V x H)

Environmental Conditions

  • Cooling Method
    Water cooled
