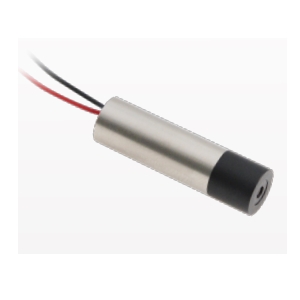

LDM-0850-C-0040-04-99-000-A

Laser by Coherent Corp.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Coherent Corp..

The LDM-0850-C-0040-04-99-000-A from Coherent Corp. is a Laser with Wavelength 845 nm, 850 nm, 855 nm, Power 3.5 to 4.8 mW, Operating Temperature 0 to 60 Degree C (Case), Storage Temperature -40 to 85 Degree C. More details for LDM-0850-C-0040-04-99-000-A can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LDM-0850-C-0040-04-99-000-A
  • Manufacturer
    Coherent Corp.
  • Description
    40 mW IR Laser Diode Module

General Parameters

  • Type
    Laser Module, Laser Pointer, Alignment Laser
  • Configuration
    Laser Head
  • Application Industry
    Entertainment, Environmental, Scientific / Research
  • Application
    Display device, Laser Surveying, Alignment
  • Operation Mode
    CW Laser
  • Wavelength
    845 nm, 850 nm, 855 nm
  • Power
    3.5 to 4.8 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Beam Divergence :
    0.5 to 1 mrad
  • Current
    16 to 39 mA
  • Voltage
    2.5 to 3.5 V
  • Note
    Expected Lifetime: 10000 h

Physical Properties

  • Laser Head Dimension
    20 x 7 mm (L x Dia.)
  • Dimension
    20 x 7 mm (L x Dia.)

Environmental Conditions

  • Relative Humidity
    5 to 85%
  • Operating Temperature
    0 to 60 Degree C (Case)
  • Storage Temperature
    -40 to 85 Degree C
