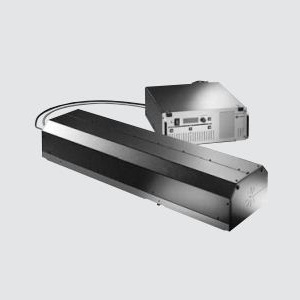

Paladin 355-10000

Laser by Coherent Corp.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Coherent Corp..

The Paladin 355-10000 from Coherent Corp. is a Laser with Wavelength 355 nm, Power 10 W, Output Power (CW) 10 W, Output Power (Pulsed) 10 W, Pulse Width 15 ps. More details for Paladin 355-10000 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Paladin 355-10000
  • Manufacturer
    Coherent Corp.
  • Description
    Quasi-CW modelocked UV lasers, ranging from 8W to 24W.

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research
  • Application
    Material processing, Atomic & Molecular Physics
  • Operation Mode
    CW/Pulsed Laser
  • Wavelength
    355 nm
  • Power
    10 W
  • Output Power (CW)
    10 W
  • Output Power (Pulsed)
    10 W
  • Pulse Width
    15 ps
  • Repetition Rate
    80 MHz
  • Technology
    Mode-Locked Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Ultraviolet
  • Polarization
    Vertical
  • Polarization Orientation
    Linear
  • Transverse Mode
    TEM00
  • Beam Divergence :
    550 µrad
  • Gain Medium Type
    Solid State Laser
  • Warm up time
    15 Minutes
  • Modulation Frequency
    50 to 60 Hz
  • Power Consumption
    200 to 1000 VA
  • Pointing Stability :
    20 µrad/°C
  • RMS Noise Power
    2% rms
  • Power Supply
    90 to 230 VAC

Physical Properties

  • Laser Head Dimension
    305 x 200 x 1100 mm (12 x 7.9 x 43.3 in.)
  • Laser Head Weight
    50 kg (110 lbs.)
  • Power Supply Dimension
    482 x 177 x 505 mm (19 x 7 x 19.9 in.), 19 in., rack-mountable
  • Power Supply Weight
    30 kg (66 lbs.)
  • Beam Diameter
    1 mm ±15%

Environmental Conditions

  • Operating Temperature
    15 to 35°C
  • Storage Temperature
    -25 to 60 Degree C
