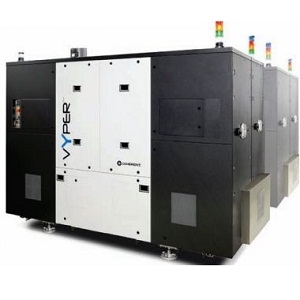

TwinVYPER

Laser by Coherent Corp.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Coherent Corp..

The TwinVYPER from Coherent Corp. is a Laser with Wavelength 308 nm, Power 2400 W, Output Power (Pulsed) 2400 W, Pulse Energy 4000 mJ, Pulse Width 24 ns. More details for TwinVYPER can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TwinVYPER
  • Manufacturer
    Coherent Corp.
  • Description
    Very High Power Excimer Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Annealing
  • Operation Mode
    Pulsed laser
  • Wavelength
    308 nm
  • Power
    2400 W
  • Output Power (Pulsed)
    2400 W
  • Pulse Energy :
    4000 mJ
  • Pulse Energy
    4000 mJ
  • Pulse Width
    24 ns
  • Repetition Rate
    600 Hz
  • Technology
    Excimer Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Ultraviolet
  • Beam Divergence :
    4.5 x 1.3 mrad(V x H)
  • Gain Medium Type
    Gas Laser
  • Modulation Frequency
    50 to 60 Hz
  • Power Supply
    400 VAC

Physical Properties

  • Dimension
    2800 x 1700 x 2085 mm(110 x 66.9 x 82 in.)
  • Weight
    8800 kg/19,400 lbs.
  • Beam Area
    35 ±4 x 14.5 ±3 mm(V x H)

Environmental Conditions

  • Cooling Method
    Water cooled
