X-LASE SERIES

Laser by Coherent Corp.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Coherent Corp..

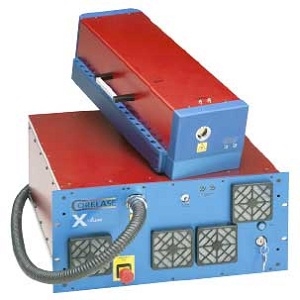

The X-LASE SERIES from Coherent Corp. is a Laser with Wavelength 1060 nm, Power 24 W, Output Power (Pulsed) 24 W, Pulse Energy 6 uJ, Pulse Width 20 to 30 psec. More details for X-LASE SERIES can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    X-LASE SERIES
  • Manufacturer
    Coherent Corp.
  • Description
    INDUSTRIAL PICOSECOND FIBER LASERS

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing
  • Application
    Laser Ablation, Cutting, Scribing, Welding
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1060 nm
  • Power
    24 W
  • Output Power (Pulsed)
    24 W
  • Pulse Energy :
    6 uJ
  • Pulse Energy
    6 uJ
  • Pulse Width
    20 to 30 psec
  • Repetition Rate
    1 to 4 MHz
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Polarization Orientation
    Random
  • Gain Medium Type
    Solid State Laser
  • Modulation Frequency
    50 to 60 Hz
  • Interface
    Ethernet, RS232
  • Power Supply
    196 to 240 VAC

Physical Properties

  • Laser Head Dimension
    189 mm x 500 mm x 155 mm (wlh)
  • Laser Head Weight
    16 kg
  • Power Supply Dimension
    19”/5HU/463 mm
  • Power Supply Weight
    22 kg
  • Fiber length
    2 m

Environmental Conditions

  • Cooling Method
    Water cooled
