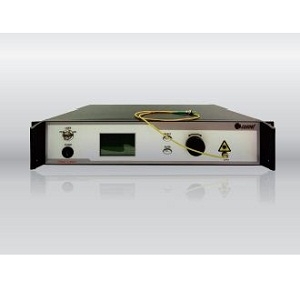

VFLS-1064-B-SF-HP

Request Quote

Note: Your Quotation Request will be directed to Connet Laser Technology.

The VFLS-1064-B-SF-HP from Connet Laser Technology is a Laser with Wavelength 1040 to 100 nm, Power Up to 20 W, Output Power (CW) Up to 20 W, Operating Temperature -5 to 50 Degree C, Storage Temperature -40 to 85 Degree C. More details for VFLS-1064-B-SF-HP can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    VFLS-1064-B-SF-HP
  • Manufacturer
    Connet Laser Technology
  • Description
    1.0 µm High Power Single Frequency Fiber Laser

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Defense / Military & Aerospace
  • Application
    Sensing, LiDAR, Laser Cooling & Trapping, Spectroscopy, Spectrum Analysis
  • Operation Mode
    CW Laser
  • Wavelength
    1040 to 100 nm
  • Spectral Width :
    100 KHz
  • Power
    Up to 20 W
  • Output Power (CW)
    Up to 20 W
  • Tunable
    Yes
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Polarization Orientation
    Linear
  • Polarization ratio :
    Polarization Extinction Ratio (PER): 18 dB
  • Gain Medium Type
    Solid State Laser
  • Connectors
    FC/APC
  • Power Stability
    ±1 to ±2 %
  • Power Supply
    100 to 240 VAC
  • Note
    Side Mode Suppression Ratio (SMSR): 40 dB, Isolation: 35 dB, Phase Noise: 30 µRad/rt(Hz), Relative Intensity Noise: -120 dBC/Hz

Physical Properties

  • Package
    Rack-Mount
  • Dimension
    19"2U
  • Fiber length
    0.5 m

Environmental Conditions

  • Operating Temperature
    -5 to 50 Degree C
  • Storage Temperature
    -40 to 85 Degree C
