VFLS-1064-M-25-PL

Request Quote

Note: Your Quotation Request will be directed to Connet Laser Technology.

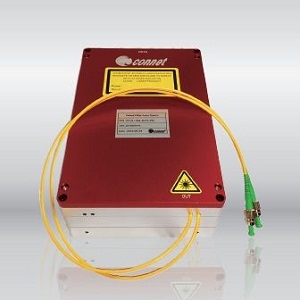

The VFLS-1064-M-25-PL from Connet Laser Technology is a Laser with Wavelength 1040 to 1083 nm, Power 5 W, Output Power (Pulsed) 5 W, Pulse Width 1 to 50 ns, Repetition Rate 30 to 500 KHz. More details for VFLS-1064-M-25-PL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    VFLS-1064-M-25-PL
  • Manufacturer
    Connet Laser Technology
  • Description
    1064 nm Short Pulse Fiber Laser for LiDAR

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Defense / Military & Aerospace, Medical
  • Application
    LiDAR, Dental, Diagnosis, Laser Rangefinders, Targeting, Telemetry
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1040 to 1083 nm
  • Power
    5 W
  • Output Power (Pulsed)
    5 W
  • Pulse Width
    1 to 50 ns
  • Repetition Rate
    30 to 500 KHz
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Single Mode
  • Laser Color
    Infrared
  • Polarization Orientation
    Random
  • Gain Medium Type
    Solid State Laser
  • Connectors
    FC/APC
  • Warm up time
    1 min
  • Power Stability
    ±2 %
  • Peak Power
    25 W
  • Interface
    RS-232
  • Power Supply
    24 VDC

Physical Properties

  • Dimension
    200 x 135 x 60 mm
  • Weight
    2.8 kg
  • Fiber length
    0.5 m

Environmental Conditions

  • Cooling Method
    Air-Cooled
  • Operating Temperature
    -10 to 45 Degree C
  • Storage Temperature
    -20 to 60 Degree C
