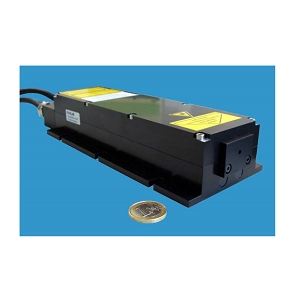

FDSS 532-1000

Laser by CryLaS GmbH
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to CryLaS GmbH.

The FDSS 532-1000 from CryLaS GmbH is a Laser with Wavelength 532 nm, Pulse Energy 1000 µJ, Pulse Width 1.8 ns, Repetition Rate 1 to 80 Hz, Operating Temperature 20 to 40 Degree C. More details for FDSS 532-1000 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FDSS 532-1000
  • Manufacturer
    CryLaS GmbH

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Medical
  • Application
    Bio-Medical
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Pulse Energy :
    1000 µJ
  • Pulse Energy
    1000 µJ
  • Pulse Width
    1.8 ns
  • Repetition Rate
    1 to 80 Hz
  • Technology
    DPSS Laser, Solid State Laser, Q-Switched Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Polarization
    Vertical
  • Transverse Mode
    TEM00
  • Beam Divergence :
    6.5 mrad
  • Laser Class
    Class IIIB
  • Energy Stability
    ± 8 %
  • Warm up time
    10 min
  • Power Consumption
    150 W
  • Peak Power
    500 kW @ 20 Hz
  • Interface
    RS 232, USB
  • Power Supply
    90 - 265 VAC, 50/60 Hz
  • Voltage
    24 VDC

Physical Properties

  • Beam Diameter
    1.0 ± 0.3 mm

Environmental Conditions

  • Operating Temperature
    20 to 40 Degree C

Technical Documents
Click to view more product details on manufacturer's website
