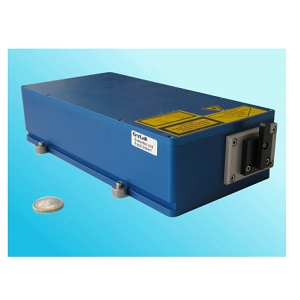

MOPA 266-50

Laser by CryLaS GmbH
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to CryLaS GmbH.

The MOPA 266-50 from CryLaS GmbH is a Laser with Wavelength 266 nm, Pulse Energy 50 µJ, Pulse Width 1.0 ns, Repetition Rate 1 to 1000 Hz, Operating Temperature 18 to 38 Degree C. More details for MOPA 266-50 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MOPA 266-50
  • Manufacturer
    CryLaS GmbH

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Medical
  • Application
    Bio-Medical
  • Operation Mode
    Pulsed Laser
  • Wavelength
    266 nm
  • Pulse Energy :
    50 µJ
  • Pulse Energy
    50 µJ
  • Pulse Width
    1.0 ns
  • Repetition Rate
    1 to 1000 Hz
  • Pulse to Pulse Stability
    ± 3% (1% rms)
  • Technology
    DPSS Laser, Solid State Laser, Q-Switched Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Mode
    Multi-Mode
  • Laser Color
    Ultraviolet
  • Polarization
    Vertical
  • Transverse Mode
    TEM00
  • Beam Divergence :
    2 mrad
  • Connectors
    BNC, SMB
  • Laser Class
    Class IVB
  • Warm up time
    10 min
  • Power Consumption
    150 W
  • Peak Power
    50 kW @ 1000 Hz
  • Interface
    USB
  • Power Supply
    90 - 265 VAC, 50/60 Hz

Physical Properties

  • Power Supply Dimension
    184 x 343 x 375 mm (H x W x L)
  • Dimension
    61x120x314 mm
  • Beam Diameter
    1.0 ± 0.3 mm

Environmental Conditions

  • Operating Temperature
    18 to 38 Degree C
