GSL-018-QTG

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Cutting Edge Optronics.

The GSL-018-QTG from Cutting Edge Optronics is a Laser with Wavelength 532 nm, Power 18 W, Output Power (Pulsed) 18 W, Pulse Energy 180 mJ, Pulse Width 10 ns. More details for GSL-018-QTG can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    GSL-018-QTG
  • Manufacturer
    Cutting Edge Optronics
  • Description

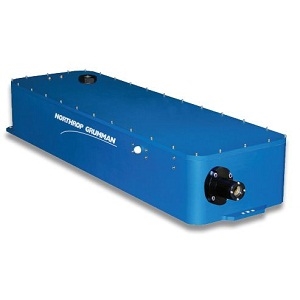

    The Gigashot L diode-pumped solid-state (DPSS) Nd:YAG laser delivers 125 mJ per pulse at 355 nm or 180mJ at 532 nm with an operating laser repetition rate of 100 Hz

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Scientific / Research, Defense / Military & Aerospace
  • Application
    Test & Measurement, LiDAR
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Power
    18 W
  • Output Power (Pulsed)
    18 W
  • Pulse Energy :
    180 mJ
  • Pulse Energy
    180 mJ
  • Pulse Width
    10 ns
  • Repetition Rate
    100 Hz
  • Pulse to Pulse Stability
    1.5 % rms
  • Technology
    DPSS Laser, Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Polarization Orientation
    Linear
  • Beam Divergence :
    1 mrad
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YAG
  • Laser Gain Medium
    Neodymium-Doped Lasers
  • Current
    30 A
  • Power Supply
    120 to 220 VAC, 3 Phase, 30 A
  • Note
    Mount: Rack-Mounted, Jitter: 2 ns

Physical Properties

  • Laser Head Dimension
    34.2 x 11.3 x 6.21 in
  • Power Supply Dimension
    30.75 x 22.0 x 47.31 in
  • Beam Diameter
    5.5 mm
  • Fiber length
    Cable Length: 10 ft

Environmental Conditions

  • Cooling Method
    Water-Cooled
  • Operating Temperature
    18 to 30 Degree C
