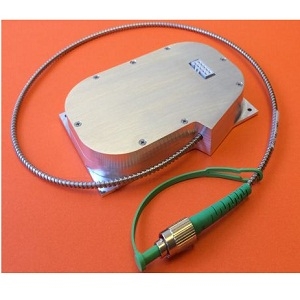

MAKO-1550

Laser by Cybel
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Cybel.

The MAKO-1550 from Cybel is a Laser with Wavelength 1545 nm, Power 1.5 W, Output Power (CW) 1.5 W, Output Power (Pulsed) 1.5 W, Pulse Energy 30 uJ. More details for MAKO-1550 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MAKO-1550
  • Manufacturer
    Cybel
  • Description
    Compact Dual Mode 1550nm Fiber Laser, Pulsed and CW

General Parameters

  • Type
    Laser System
  • Configuration
    OEM Laser Module, Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Defense / Military & Aerospace, Environmental
  • Application
    LiDAR, Laser Rangefinders, Targeting, Remote Sensing
  • Operation Mode
    CW/Pulsed Laser
  • Wavelength
    1545 nm
  • Spectral Width :
    7 nm
  • Bandwidth
    CW: 7 nm, pulsed: 100 nm
  • Power
    1.5 W
  • Output Power (CW)
    1.5 W
  • Output Power (Pulsed)
    1.5 W
  • Pulse Energy :
    30 uJ
  • Pulse Energy
    30 uJ
  • Pulse Width
    4 to 50 ns
  • Repetition Rate
    10 to 2000 kHz
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Polarization Maintaining
  • Laser Color
    Infrared
  • Gain Medium Type
    Solid State Laser
  • Connectors
    FC/APC
  • Power Consumption
    15 W
  • Peak Power
    1.5 kW
  • Interface
    Analog/digital inputs

Physical Properties

  • Package
    Benchtop
  • Dimension
    91 x 66 x 15 mm
  • Fiber length
    20 cm

Environmental Conditions

  • Relative Humidity
    0 to 95 %
  • Operating Temperature
    -10 to 50 Degree C
