HHG

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Daylight Solutions Inc.

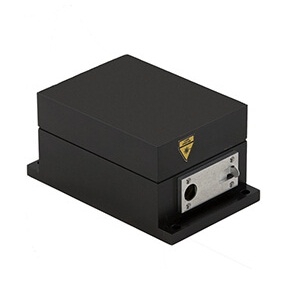

The HHG from Daylight Solutions Inc is a Laser with Wavelength Up to 200 cm-1, Power Up to 500 mW, Pulse Width 20 to 500 ns, Repetition Rate 0.1 kHz to 1 MHz, Operating Temperature 15 to 35 Degree C. More details for HHG can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    HHG
  • Manufacturer
    Daylight Solutions Inc
  • Description
    COMPACT, RAPID-SCAN, TUNABLE MID-IR LASER

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Environmental, Scientific / Research, Automotive / Industrial & Manufacturing, Medical
  • Application
    Monitoring, Remote Sensing, Spectroscopy, Imaging, Material processing, Contaminant Detection, Diagnosis, Particle Analysis
  • Operation Mode
    CW/Pulsed Laser
  • Wavelength
    Up to 200 cm-1
  • Wavelength Accuracy
    1 cm-1
  • Spectral Width :
    100 MHz
  • Power
    Up to 500 mW
  • Pulse Width
    20 to 500 ns
  • Repetition Rate
    0.1 kHz to 1 MHz
  • Tunable
    Yes
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Polarization
    Vertical
  • Polarization Orientation
    Linear
  • Transverse Mode
    TEM00
  • Beam Divergence :
    4 mrad
  • Peak Power
    Up to 1 W
  • Pointing Stability :
    1 mrad
  • Interface
    USB 2.0
  • Power Supply
    90 to 264 VAC, 47 to 63 Hz

Physical Properties

  • Laser Head Dimension
    4.2 x 2.6 x 2.1 Inch(L x W x H)
  • Dimension
    7.3 x 5.2 x 1.4 Inch(L x W x H)

Environmental Conditions

  • Cooling Method
    Air Cooled, Water Cooled
  • Relative Humidity
    0 to 80%
  • Operating Temperature
    15 to 35 Degree C
