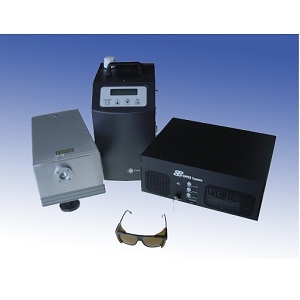

3520-30

Laser by DPSS Lasers

Note: Your Quotation Request will be directed to DPSS Lasers.

The 3520-30 from DPSS Lasers is a Laser with Wavelength 354.7 nm, Power 2 W, Output Power (CW) 2 W, Output Power (Pulsed) 2 W, Pulse Energy 67 µJ. More details for 3520-30 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    3520-30
  • Manufacturer
    DPSS Lasers

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing, Environmental
  • Application
    Fluorescence, Microscopy, Spectroscopy, Marking, Machine Vision, Inspection & Measurement, Imaging, Etching, Atomic & Molecular Physics, Particle Analysis
  • Operation Mode
    CW/Pulsed Laser
  • Wavelength
    354.7 nm
  • Power
    2 W
  • Output Power (CW)
    2 W
  • Output Power (Pulsed)
    2 W
  • Pulse Energy :
    67 µJ
  • Pulse Energy
    67 µJ
  • Pulse Width
    30 ns
  • Repetition Rate
    30 kHz
  • Pulse to Pulse Stability
    <10 %
  • Technology
    Solid State Laser, Q-Switched Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Ultraviolet
  • Polarization
    Vertical
  • Polarization Orientation
    Linear
  • Transverse Mode
    Spatoal Mode: TEM00
  • Beam Divergence :
    0.6 mrad
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YVO4
  • Laser Gain Medium
    Vanadate Laser
  • Power Consumption
    500 W
  • Power Stability
    <5%
  • Pointing Stability :
    50 µrad
  • Voltage
    90 to 240 VAC

Physical Properties

  • Laser Head Dimension
    50.8 x 19.05 x 16.5 cm
  • Laser Head Weight
    13.6 Kg
  • Power Supply Dimension
    31 x 34.3 x 14.6 cm
  • Power Supply Weight
    5 Kg
  • Beam Diameter
    1.5 mm

Environmental Conditions

  • Operating Temperature
    10 to 30 Degree C
