FC635SD16-D170N2_5M

178 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Egismos Technology Corporation.

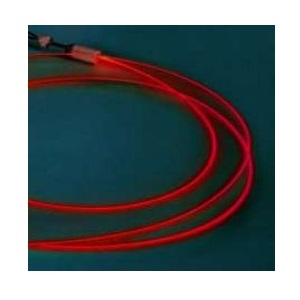

The FC635SD16-D170N2_5M from Egismos Technology Corporation is a Laser with Wavelength 630 to 640 nm, Power 14 to 20 mW, Output Power (CW) 14 to 20 mW, Operating Temperature -10 to 50 Degree C, Storage Temperature -40 to 85 Degree C. More details for FC635SD16-D170N2_5M can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FC635SD16-D170N2_5M
  • Manufacturer
    Egismos Technology Corporation

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head
  • Application Industry
    Medical, Scientific / Research
  • Application
    Laser Surgery, Dermatology, Oncology, Ophthalmology, Life Science
  • Operation Mode
    CW Laser
  • Wavelength
    630 to 640 nm
  • Power
    14 to 20 mW
  • Output Power (CW)
    14 to 20 mW
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Red
  • Current
    105 mA
  • Voltage
    2.8 to 3.5 V
  • RoHS
    Yes
  • Note
    Mean time to failure: 8000 hrs, , Fiber Material: Diffusing Fiber

Physical Properties

  • Package
    SD
  • Fiber diameter
    170 µm
  • Fiber length
    1 m

Environmental Conditions

  • Relative Humidity
    0 to 90%
  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 85 Degree C
