H834051D

Note: Your Quotation Request will be directed to Egismos Technology Corporation.

The H834051D from Egismos Technology Corporation is a Laser with Wavelength 405 nm, Power 1 mW, Output Power (CW) 1 mW, Operating Temperature 0 to 70 Degree C, Storage Temperature -40 to 85 Degree C. More details for H834051D can be seen below.

Product Specifications View similar products

Product Details

  • Part Number
    H834051D
  • Manufacturer
    Egismos Technology Corporation
  • Description

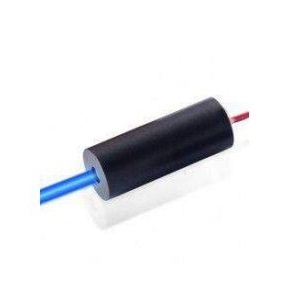

    F8 mm Laser Module; Length: 30mm-50mm;Operating Voltage: 2.7V~5V

General Parameters

  • Configuration
    Laser Head
  • Type
    Laser Module
  • Technology
    DPSS Laser
  • Operation Mode
    CW Laser
  • Wavelength
    405 nm
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Violet
  • Power
    1 mW
  • Output Power (CW)
    1 mW
  • Application
    Industrial areas, Medical, Biochemical, Laser tag
  • Application Industry
    Medical, Industrial (Material Processing)
  • Beam Shape
    Dot
  • Beam Divergence
    0.7 mrad
  • Current
    120 mA
  • Voltage
    2.7 to 5 V
  • RoHS
    Yes

Physical Properties

  • Dimension
    8 x 45 mm
  • Beam Diameter
    8 mm
  • Fiber length
    30 to 50 mm

Environmental Conditions

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Technical Documents

Click to view more product details on manufacturer's website
