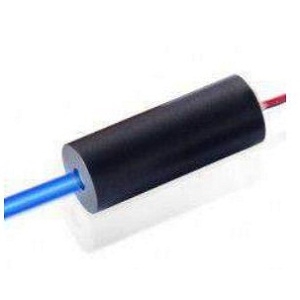

H8345010D

178 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Egismos Technology Corporation.

The H8345010D from Egismos Technology Corporation is a Laser with Wavelength 450 nm, Power 10 mW, Output Power (CW) 10 mW, Operating Temperature 10 to 70 Degree C, Storage Temperature -40 to 85 Degree C. More details for H8345010D can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    H8345010D
  • Manufacturer
    Egismos Technology Corporation
  • Description
    F8 mm Laser Module; Length: 30mm-50mm;Operating Voltage: 2.7V~5V

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head
  • Application Industry
    Medical, Scientific / Research, Entertainment
  • Application
    Laser Surgery, Dermatology, Oncology, Ophthalmology, Life Science, Laser Tag
  • Operation Mode
    CW Laser
  • Wavelength
    450 nm
  • Power
    10 mW
  • Output Power (CW)
    10 mW
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Blue, Violet
  • Beam Divergence :
    0.7 mrad
  • Beam Shape
    Dot, Round
  • Current
    220 mA
  • Voltage
    2.7 to 5 V
  • RoHS
    Yes

Physical Properties

  • Dimension
    8 x 45 mm
  • Beam Diameter
    8 mm
  • Fiber length
    30 to 50 mm

Environmental Conditions

  • Operating Temperature
    10 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
