H859801D/R

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Egismos Technology Corporation.

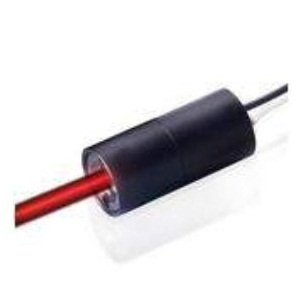

The H859801D/R from Egismos Technology Corporation is a Laser with Wavelength 980 nm, Power 1 mW, Output Power (CW) 1 mW, Operating Temperature -10 to 50 Degree C, Storage Temperature -40 to 85 Degree C. More details for H859801D/R can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    H859801D/R
  • Manufacturer
    Egismos Technology Corporation
  • Description
    F8 mm Laser Module; Length: 17mm ~ 23mm;Operating Voltage: 3V,5V

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head
  • Application Industry
    Medical, Scientific / Research, Entertainment
  • Application
    Laser Surgery, Dermatology, Oncology, Ophthalmology, Life Science, Laser Tag
  • Operation Mode
    CW Laser
  • Wavelength
    980 nm
  • Power
    1 mW
  • Output Power (CW)
    1 mW
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Beam Divergence :
    0.7 mrad
  • Beam Shape
    Dot, Round
  • Current
    15 to 20 mA, 30 mA
  • Voltage
    3 to 5 V
  • RoHS
    Yes

Physical Properties

  • Power Supply Dimension
    8 x 23 mm(D x L)
  • Beam Diameter
    8 mm
  • Fiber length
    17 to 23 mm

Environmental Conditions

  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 85 Degree C
