H9565050L/C

178 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Egismos Technology Corporation.

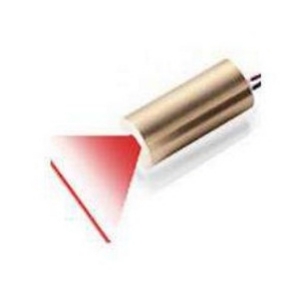

The H9565050L/C from Egismos Technology Corporation is a Laser with Wavelength 650 nm, Power 50 mW, Output Power (CW) 50 mW, Operating Temperature -10 to 50 degree C, Storage Temperature -40 to 85 Degree C. More details for H9565050L/C can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    H9565050L/C
  • Manufacturer
    Egismos Technology Corporation
  • Description
    F9 mm Laser Module; Length: 21mm ~ 30mm ; Operating Voltage: 3V, 5V

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head
  • Application Industry
    Medical, Scientific / Research, Entertainment
  • Application
    Laser Surgery, Dermatology, Oncology, Ophthalmology, Life Science, Laser Tag
  • Operation Mode
    CW Laser
  • Wavelength
    650 nm
  • Spectral Width :
    2 mm at 300 mm
  • Power
    50 mW
  • Output Power (CW)
    50 mW
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    0.7 mrad
  • Beam Shape
    Line
  • Current
    260 to 280 mA, 320 mA
  • Voltage
    3 to 5 V
  • RoHS
    Yes

Physical Properties

  • Dimension
    9 x 30 mm
  • Beam Diameter
    9 mm
  • Fiber length
    21 mm

Environmental Conditions

  • Operating Temperature
    -10 to 50 degree C
  • Storage Temperature
    -40 to 85 Degree C
