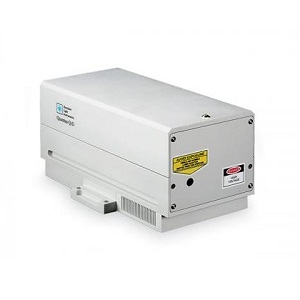

Quantas EO-Q1B-YLF

Laser by EKSMA Optics
73 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to EKSMA Optics.

The Quantas EO-Q1B-YLF from EKSMA Optics is a Laser with Wavelength 1053 nm, Pulse Energy 0.5 to 10 mJ, Pulse Width 8 ns, Repetition Rate 10 Hz, Operating Temperature 15 to 30 Degree C. More details for Quantas EO-Q1B-YLF can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Quantas EO-Q1B-YLF
  • Manufacturer
    EKSMA Optics
  • Description
    Nd:YLF diode-pumped Q-switched lasers

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated), OEM Laser Module
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Scientific / Research, Environmental
  • Application
    Spectroscopy, Fluorescence, Atomic & Molecular Physics, Spectrum Analysis, Cladding, Remote Sensing, Laser Ablation
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1053 nm
  • Pulse Energy :
    0.5 to 10 mJ
  • Pulse Energy
    0.5 to 10 mJ
  • Pulse Width
    8 ns
  • Repetition Rate
    10 Hz
  • Pulse to Pulse Stability
    1 % rms
  • Technology
    Q-Switched Laser, DPSS Laser, Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Polarization
    Horizontal
  • Polarization Orientation
    Linear
  • Transverse Mode
    TEM00
  • Beam Divergence :
    3 mrad
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YLF
  • Laser Gain Medium
    Neodymium-Doped Laser
  • Modulation Frequency
    47 to 63 Hz
  • Interface
    Ethernet
  • Power Supply
    90 to 240 VAC, 30 W
  • Note
    Power Drift: ± 3%

Physical Properties

  • Laser Head Dimension
    113 x 230 x 112 mm
  • Power Supply Dimension
    85 x 165 x 50 mm
  • Power Supply Weight
    5 kg
  • Beam Diameter
    1.5 mm

Environmental Conditions

  • Cooling Method
    Air-Cooled
  • Relative Humidity
    10 to 80% (Non-Condensing)
  • Operating Temperature
    15 to 30 Degree C
