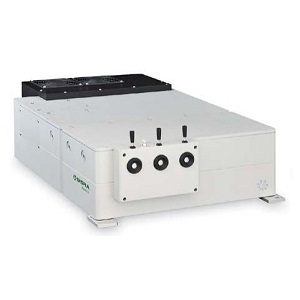

Atlantic GR2

Laser by EKSPLA
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to EKSPLA.

The Atlantic GR2 from EKSPLA is a Laser with Wavelength 532 nm, Power 2 W, Pulse Energy 0.02 mj, Pulse Width 7 to 13 ps, Repetition Rate 100 to 1000 KHz. More details for Atlantic GR2 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Atlantic GR2
  • Manufacturer
    EKSPLA

General Parameters

  • Type
    Laser System
  • Configuration
    OEM Laser Module, Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research, Environmental
  • Application
    Drilling, Cutting, Etching, Surface Treatment, Sensing, Imaging, Cladding, Structuring, Laser Ablation, Machine Vision
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Power
    2 W
  • Pulse Energy :
    0.02 mj
  • Pulse Energy
    20 µJ
  • Pulse Width
    7 to 13 ps
  • Repetition Rate
    100 to 1000 KHz
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Polarization
    Vertical
  • Polarization Orientation
    Linear
  • Beam Divergence :
    1.5 mrad
  • Current
    5 A
  • Laser Class
    Class IV
  • Power Consumption
    0.5 kW
  • Pointing Stability :
    50 µRad
  • Interface
    keypad, USB
  • Voltage
    100 to 240 V AC
  • Tags
    Atlantic Series
  • Note
    Far Field : 0.85, Triggering mode : Internal / External, Temperature Stability : ± 2 Degree C

Physical Properties

  • Laser Head Dimension
    372 x 158 x 590 mm (W x H x L) Air
  • Power Supply Dimension
    471 x 153 x 511 mm (W x H x L) Air
  • Beam Diameter
    1.2 ± 0.2 mm
  • Fiber length
    3 m

Environmental Conditions

  • Cooling Method
    Air Cooled
  • Relative Humidity
    10 to 80 %
  • Operating Temperature
    18 to 27 Degree C
